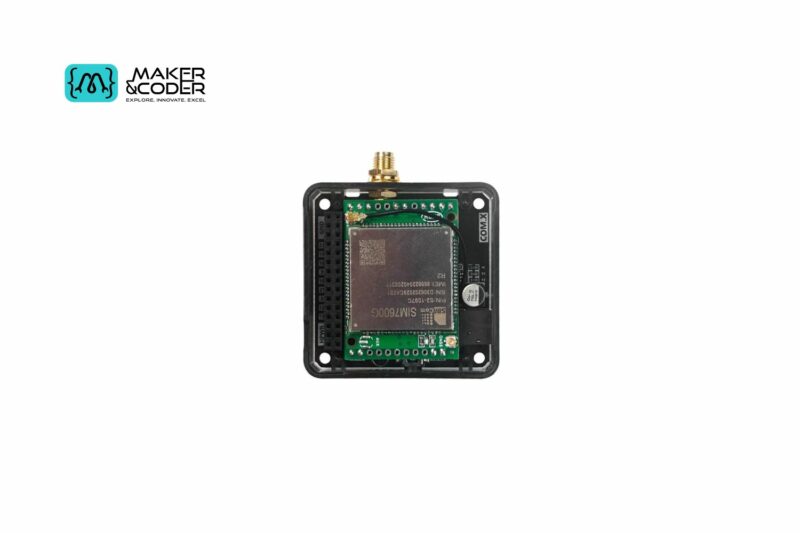

COM.LTE Module(SIM7600G)
COM.LTE Module(SIM7600G) Product Description A stackable multifunctional LTE communication module, the built-in LTE communication module SIM7600G, supports LTE-TDD/LTE-FDD/WCDMA and GSM frequency bands. CAT4 (downlink speed is 150 Mbps), which supports voice calls and SMS. Product Features Stackable design Support voice calls, SMS text messages, cellular data transmission Independent external power supply Built-in microphone AT command […]
Maker & Coder Subscriber? Login to get your discount
COM.LTE Module(SIM7600G)
Product Description
A stackable multifunctional LTE communication module, the built-in LTE communication module SIM7600G, supports LTE-TDD/LTE-FDD/WCDMA and GSM frequency bands. CAT4 (downlink speed is 150 Mbps), which supports voice calls and SMS.
Product Features
- Stackable design
- Support voice calls, SMS text messages, cellular data transmission
- Independent external power supply
- Built-in microphone
- AT command control
- SIM card type: MicroSIM
- Status signal: two LED indicators
- External antenna: SMA antenna
- Serial communication: UART 115200 bps
- LTE Data transmission speed
Applications
- Remote meter reading system
- Automatic Web Spider SMS-notifier
- Wireless communication
- M2M industrial
- Vehicle-mounted
- Video
Specifications
Frequency band LTE-FDD/LTE-TDD/WCDMA/GSM
Network protocol TTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS etc.
Communication UART 115200bps
DC interface specifications 5.5mm
Net weight 55g
Gross weight 90g
Product Size 54.2*54.2*13.2mm
