Product Description

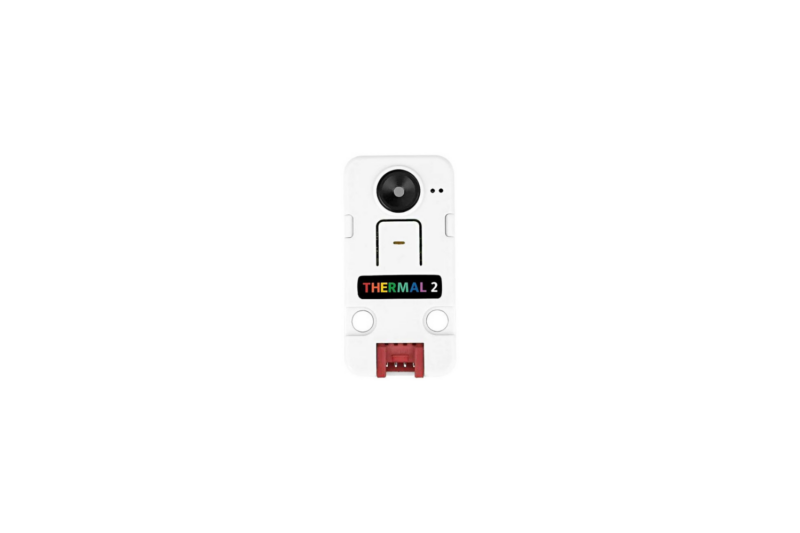

UNIT Thermal2 is a data processing MCU-equipped MLX90640 thermal imaging acquisition unit. It has 32×24 imaging pixels, a field of view of 110°x75°, and a temperature measurement range of -40°C to 300°C.
Product Features
- MCU:ESP32-PICO-D4
- MLX90640 Infrared (IR) Sensor
- Reset buttom
- Passive buzzer
- Integrated programmable RGB LED
- GROVE I2C/HY2.0-4Pinterface
- Programming platform: Arduino/UIFlow
Applications
- High-precision non-contact temperature measurement
- Motion detection
- Visual infrared thermometer
- DIY Projects
Specifications
- MCU ESP32-PICO-D4
- SENSOR MLX90640
- POWER 5V @ 0.5A
- Field of View 110°×75°
- Measurement Range -40°C ~ 300°C
- Resolution 32 x 24
- Refresh Rate 0.5Hz-64Hz
- Operating temperature -10°C ~ 60°C
- Housing material Plastic ( PC )
- Product Size 48mm × 24mm ×8mm
- Package Size 136mm × 92mm × 13mm
- Product Weight 4.9g
- Package Weight 10.7g
