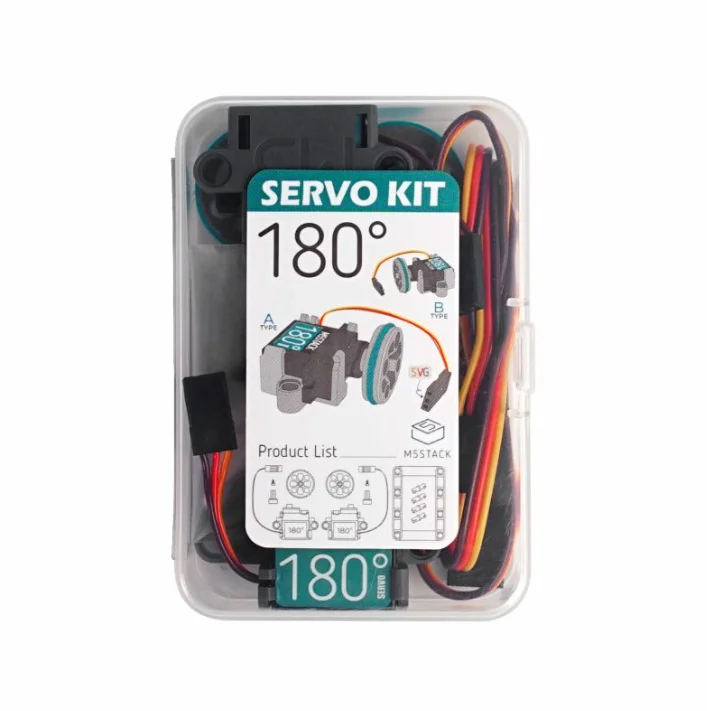

Servo Kit 180° – Servo Motor Kit
Description The Servo Kit 180° is a 9g servo kit 180° with a Lego fixed bracket. The kit provides a variety of 180° servo motor kit accessories (servo wheels, axles, servo discs, etc.), which are easy to disassemble and assemble. It can be directly connected with Lego parts. This 180-degree servo motor is only used […]
Maker & Coder Subscriber? Login to get your discount
Description
The Servo Kit 180° is a 9g servo kit 180° with a Lego fixed bracket. The kit provides a variety of 180° servo motor kit accessories (servo wheels, axles, servo discs, etc.), which are easy to disassemble and assemble. It can be directly connected with Lego parts. This 180-degree servo motor is only used to control the rotation within the angle range of 0~180°. When using it, pay attention to selecting the appropriate power supply voltage to prevent stalling and avoid burning out the servo. This is an ideal 180° servo kit for robotics applications.
Features
- Miniature servo system
- Compatible with Maker & Coder
- Simple to control
- Supports Arduino, MCLab
Includes
- 2 x SG90 Servo 180°
- 2 x Servo wheels, 24mm
- 2 x M2*4mm Hexagon socket countersunk head self-tapping screws
- 1 x Square frame beam building block
- 1 x Servo fixing clip A
- 1 x Servo fixing clip B
- 2 x Servo extension cables, 30cm
- 2 x Servo disc accessory kits (including several servo discs and screws)
- 2 x Servo axles
- 2 x Grove to Servo adapters
- 4 x Black Connector
Specifications
| Specification | Parameter |
|---|---|
| Gear material | Metal motor teeth, plastic gearbox |
| PWM frequency | 50Hz/0.5~2.5MS |
| Servo weight | 9g |
| Torque | 1.6kg•cm/4.8V; 1.8kg•cm/6.0V |
| Speed of 180° servo | 0.1sec/60°/4.8V; 0.09sec/60°/6.0V |
| Stalling current | 750mA |
| No-load current | 60mA |
| Gear material | Metal motor teeth, plastic gearbox |
| Wire length | 3cm |
| Dead zone | 8μm |
| Spline | 20T |
| Voltage | 4.8 ~ 6.0V |
| Product Size | 40 x 12 x 36mm |
| Product Weight | 48.6g |
| Package Size | 163 x 118 x 22mm |
| Package Weight | 51.6g |
