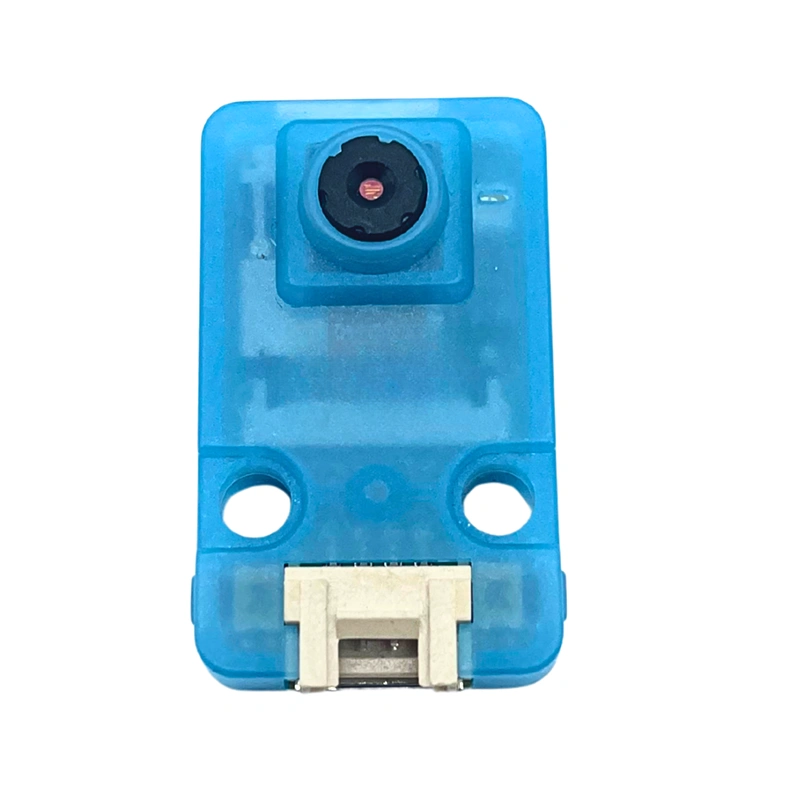

AI CAMERA – UnitV-OV2640
UnitV-OV2640 is an AI vision processing camera unit equipped with the Kendryte K210, integrating a dual-core 64-bit RISC-V CPU and an advanced neural network processor edge computing system-on-chip suitable for embedding into various devices.
Maker & Coder Subscriber? Login to get your discount
MC4.0 AI CAMERA – UnitV-OV2640
DESCRIPTION :
UnitV-OV2640 is an AI vision processing camera unit equipped with the Kendryte K210, integrating a dual-core 64-bit RISC-V CPU and an advanced neural network processor edge computing system-on-chip suitable for embedding into various devices.
Benefits of the kit
- Enables AI-powered vision projects such as object detection, classification, and tracking
- Built with Kendryte K210 AI processor, providing fast edge AI processing without needing a PC
- Supports real-time recognition of objects, shapes, and target coordinates
- Provides smooth performance with dual-core 64-bit RISC-V CPU and dedicated Neural Network Processor (KPU)
- Ideal for robotics applications like autonomous navigation, smart sorting, and target following
- Includes RGB status LED for quick visual feedback during operation
- Supports development using MicroPython and MaixPy IDE, making it easy for students and developers to program AI vision applications
- Supports TF/microSD card expansion for storing images, data, and AI models
- Compact design with Grove-compatible HY2.0 interface for easy plug-and-play integration
- Perfect for STEAM education, AI learning, and advanced robotics competitions
Key Features
- Equipped with the OV2640 2-megapixel image sensor
- Two programmable buttons
- Front-facing RGB LED indicator for easy status display.
- Supports TF card expansion
- Supports the MicroPython development environment
SPECIFICATION :
- Dual-core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz (Normal)
- Double-precision FPU
- 8MiB 64-bit on-chip SRAM
- Neural Network Processor (KPU) / 0.8Tops
- Programmable I/O Array (FPIOA)
- AES, SHA256 Accelerator
- Direct Memory Access Controller (DMAC)
- Supports MicroPython
- Firmware encryption support
- On-board hardware resources:
- Flash: 16M
- Camera: OV2640
- Buttons: 2
- Status LED: WS2812 LED
- Expansion card interface: TF card/microSD
- Interface: HY2.0/compatible GROVE
APPLICATIONS :
- Object detection/classification
- Real-time acquisition of target size and coordinates
- Real-time acquisition of detected target types
- Shape recognition
WHAT’S IN THE BOX
- 1 x UnitV-OV2640
- 1 x HY2.0-4P Grove cable (20cm)
- 1 x USB Type-C cable (1m)
